If the ventricular septal defect (VSD) is small, it does not cause any notable changes to the patient’s ECG. On the other hand, a large VSD may cause significant left to right shunting and overload of both the left and right ventricles. Left axis deviation may be evident. The R + S value in lead V₂ or V₃ may be greater than or equal to 4 mV—this is known as the “Katz-Wachtel sign.” ECG findings of left atrial enlargement can also be seen in these patients.

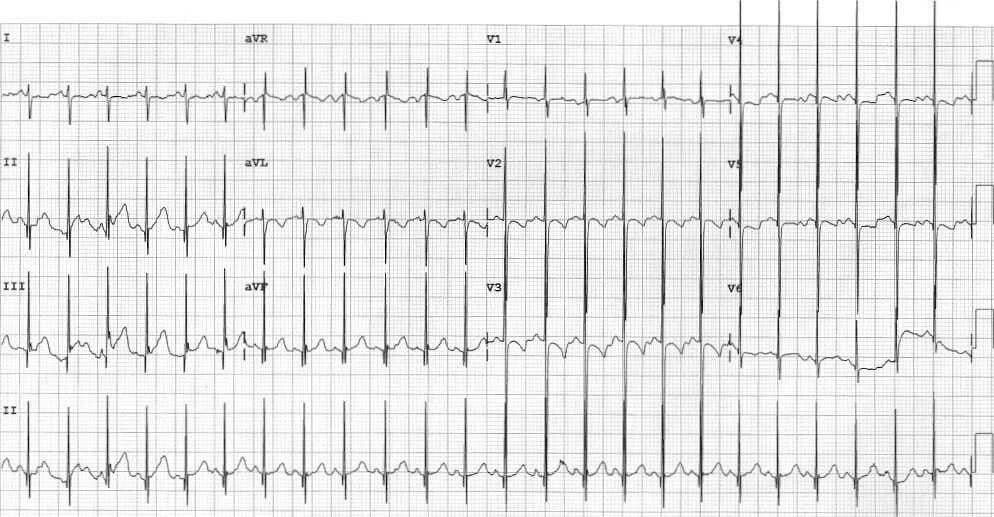

Katz-Watchel Phenomenon ⁶²

The ECG above has tall biphasic QRS complexes with > 50 mm amplitude in precordial leads V₂, V₃, and V₄, characteristics associated with biventricular hypertrophy that can result from a severe VSD.
